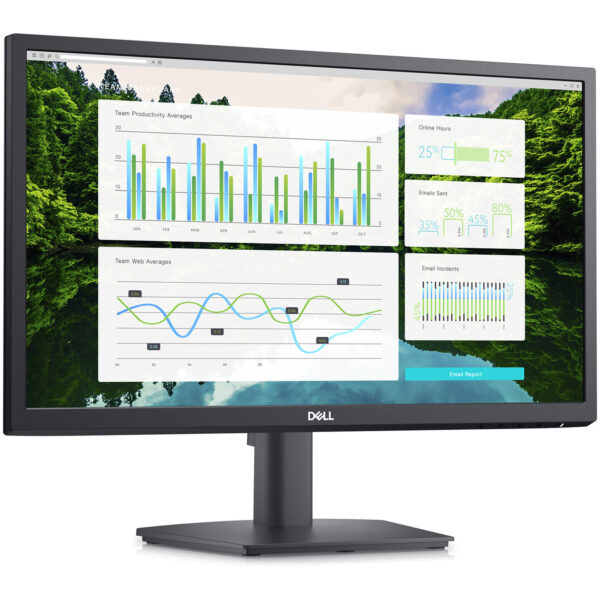

Monitor Dell 22 LED E2223HN 54.48cm (21.5″)

One Intel® Xeon® E-2300 series processor with up to 8 cores per processor One Intel® Pentium® processor with up to 2 cores per processor

Operating System

Canonical^® Ubuntu^® Server LTS Citrix^® Hypervisor Microsoft^® Windows Server^® with Hyper-V RedHat^® Enterprise Linux SUSE^® Linux Enterprise Server VMware^® ESXi^®i For specifications and interoperability details, see

Chipset

Intel® C256 series

Memoryⁱ

DIMM Speed Up to 3200 MT/s Note: For Pentium® processor, maximum memory speed supported is 2666 MT/s Memory Type UDIMM Memory Module Slots 4 DDR4 DIMM slots Maximum RAM UDIMM 128 GB

Storage

Front Bays Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB

Storage Controllers

Internal Controllers PERC H345, PERC H755, HBA355i External Controllers HBA355e, 12 Gbps SAS Ext. HBA Software RAID S150 Internal Boot USB or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs 240 GB or 480 GB

Security

Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server iDRAC9 iDRAC Service Module iDRAC Direct Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage SupportAssist plugin OpenManage Update Manager plugin Mobility OpenManage Mobile Tools iDRAC RESTful API with Redfish RACADM CLI IPMI System Update Utility Update Catalogs OpenManage Integrations BMC Truesight Microsoft® System Center RedHat® Ansible Modules VMware® vCenter and vRealize Operations Manager OpenManage connections IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager Nagios® Core Nagios® XI

Power Supplies

300 W Bronze AC/100-240 V Cabled power supply

Ports

Network Options 2 x 1 GbE LOM Front Ports 1 x Dedicated iDRAC Direct micro-USB 1 x USB 3.0 Rear Ports 5 x USB 2.0 1 x USB 3.0 1 x VGA 1 x Serial Port 1 x iDRAC dedicated NIC port 2 x NIC port Internal ports 1 x USB 3.0 (optional)

Slots

PCIe 2 x PCIe Gen4 slots and 2 x PCIe Gen3 slots

Chassis

One fan

Bezel

Security bezel

Form Factor

4U mini tower server

Dimensions & Weight

Height: 360 mm (14.17 in.) Width: 175 mm (6.88 in.) Depth: 453.75 mm (33.48 in.) with bezel Weight: 11.68 kg (25.74 lbs.)ⁱ

Rack Support

System is optimized to fit into EIA-310 spec Racks. Dell does not offer specific rails for this platform.

Recommended Support

Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
